Popis

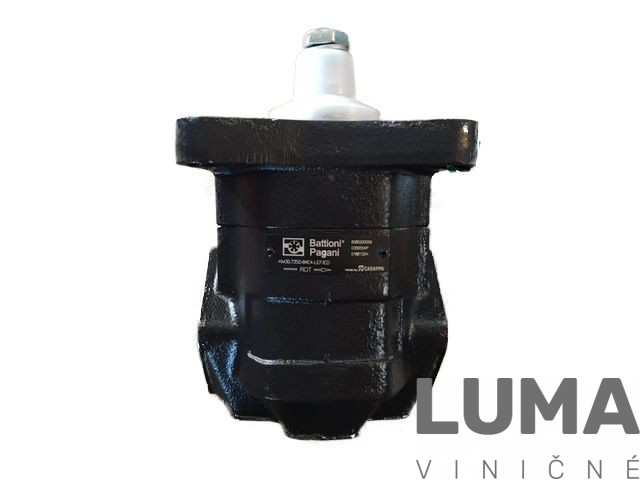

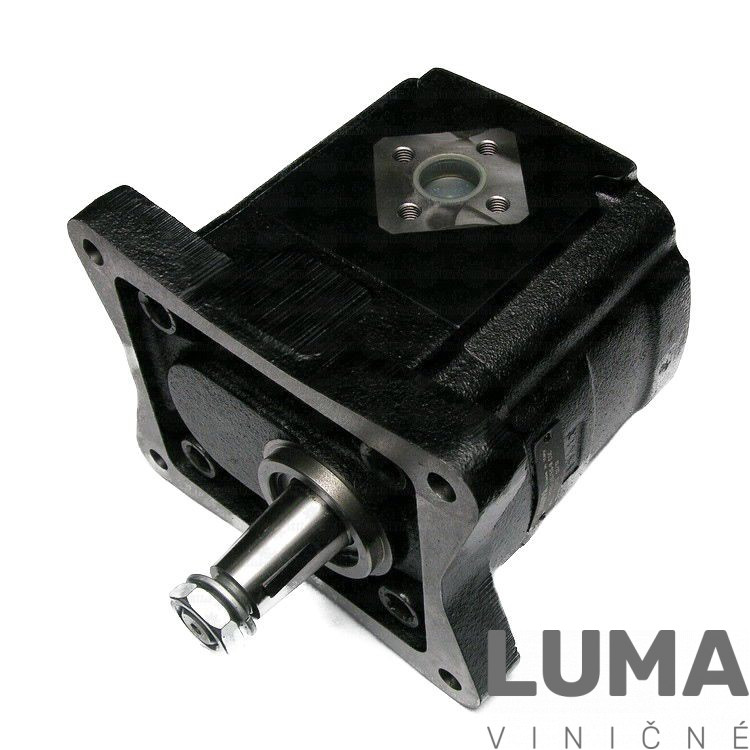

Hydromotor CASAPPA KM 30.73 na vývevu BP BALLAST 11000H

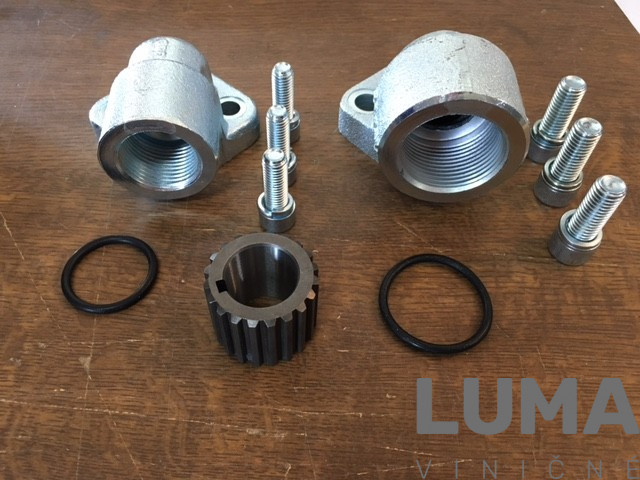

Hydromotor je dodávaný spolu s pripojovacími kolienkami a tisíc hranom.
| Especificaciones | – High operating pressure: – High efficiency at high temperatures – Solid and compact design |
| Ventajas | – Long service life – Wide range of applications – Low space requirement |
| Usos | – Mobile applications – Industrial applications |
| Propiedades | – Low noise emission – Customer-specific design possible |
| Unit | Each |
| Connection | European 4-hole flange |
| Material | Pump housing, flange and back cover: Steel |
| Shaft type | Tapered shaft 1 : 8 |
| Pressure (bar) | Pressure continuous (p1): 230 |
| Flange type | E4, spacing ring 60,3 mm group 3. |
| Note | Always connect leakage oil line |

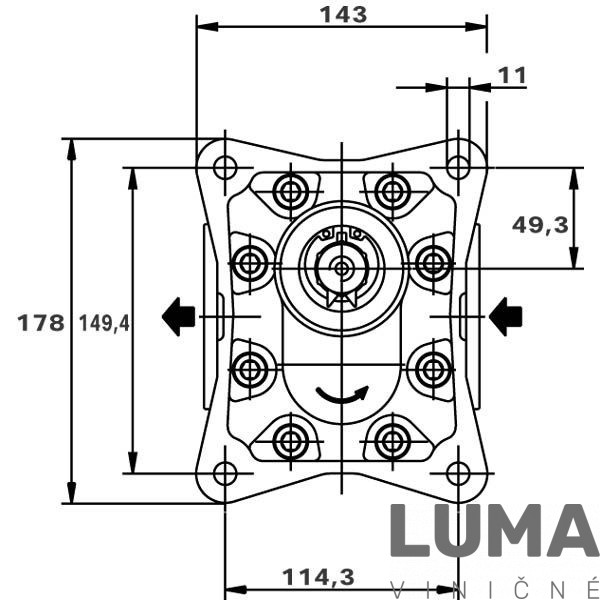

| A (mm) | 164 |
| B (mm) | 109 |
| D (mm) | 62 |
| Direction of rotation | CW + CCW |
| E (mm) | 62 |
| P1 (bar) | 180 |
| Suction flange | 35 G-20 |
| Pressure flange | 3 G-16 |
| N max. (Rpm) | 2500 |
| N min. (Rpm) | 350 |
| Q (cc/rev) | 73,82 |
